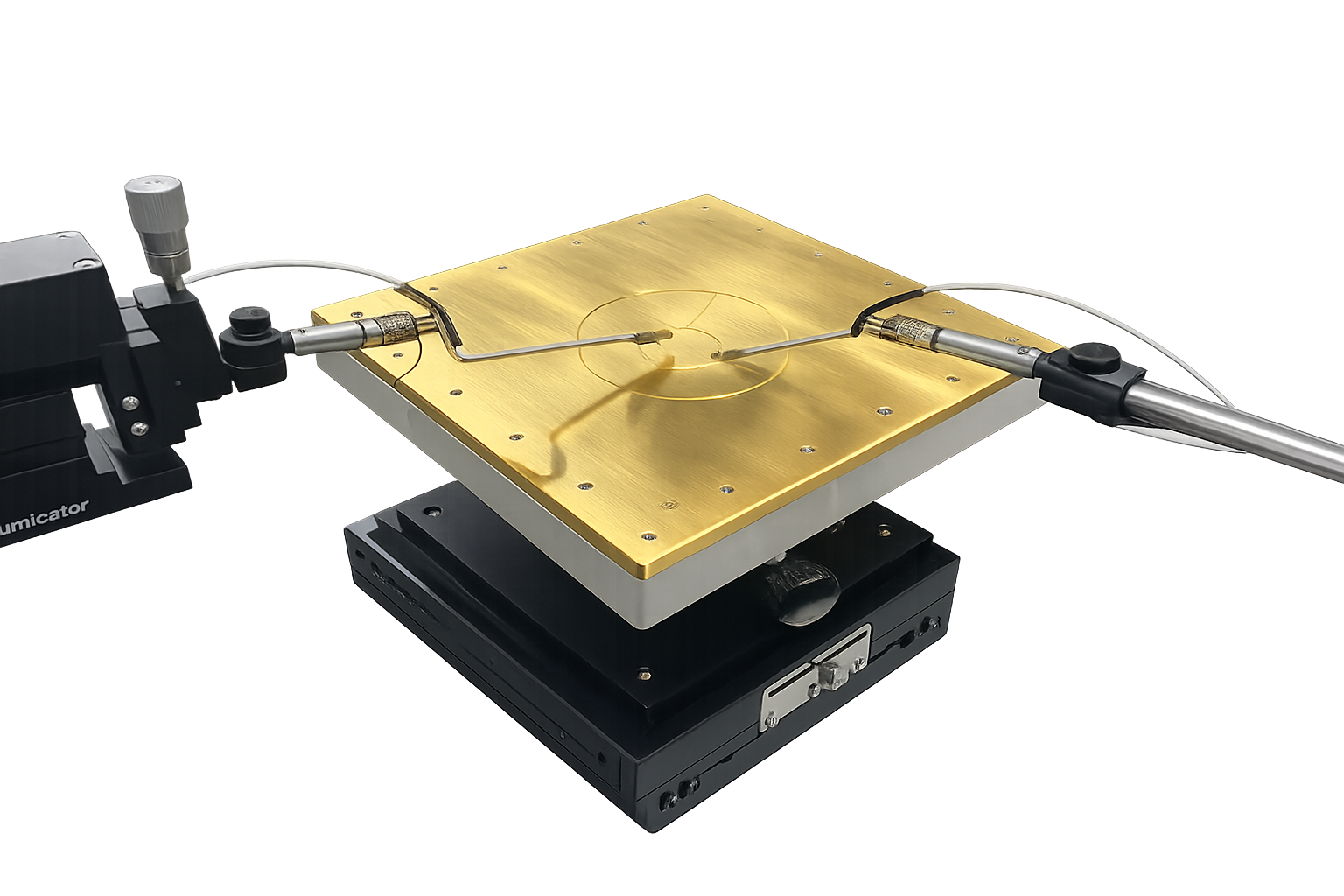

9-inch square ambient wafer chuck with five independently controlled vacuum zones for securely holding wafers, wafer pieces, individual dies, calibration substrates, and cleaning substrates on a VERSA probe station.

VERSA-SQ-CHK-9

$3,350.00 (excl. 0% Tax)

excl. 0% Tax
- Destination based VAT US - Physical Products
Plus Shipping Costs

Category: Probe Positioners / Manipulators

Description
General Inquiries or Request Quote

Description

Wafer chuck, ambient, square, 9”. Supports simultaneous hold down of wafers, wafer pieces, individual die, calibration substrates, cleaning substrates, and more. 5 independently controlled vacuum zones.
