Accessories
Showing all 48 results
-
7A Tungsten Fine Probe Tip (Box of 10)
$135.00 – $145.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsIdeal for small geometry probing.
The point is thin enough for probing finest lines on a small pitch.(10 tips per box)
Option Info:
High conductance probe tips are available by contacting Micromanipulator & are specially made to increase tip conductance, reducing probe scrubbing by a factor of >5.
More Info -
7B Tungsten Probe Tip (Box of 10)
$125.00 – $205.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsIdeal for general purpose probing. Gold Plating & Larger Tip Radius Available.
(10 tips per box)
Option Info: In the select box below, the first number is the point radius. If the number is followed by the letter “G”, then it is Gold Plated Tungsten.
More Info -
7C C-Bend Dumet Probe Tip (Box of 10)
$70.00–$135.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsDumet wire is the basic metal component of a Lead-in-Wire.
A diode header wire. With required vacuum tight glass-to-metal seal.
Dumet material with bendable shank and cat whisker pure tungsten tip.(10 tips per box)
More Info -
7D Tungsten Carbide Probe Tip (Box of 10)
$350.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsCutting Probe Tip.
A single piece probe made from tungsten carbide wire.
The point is ground, not etched. Allowing for a larger point radius & tolerance.(10 tips per box)
More Info -
7G Tungsten Probe Tips (Box of 10)
$75.00–$150.00 (excl. 0% Tax)Per box of 10 tipsProbe Tips -
7G Series Customizable Probe Tips (Box of 10)
$190.00 – $225.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsFor general purpose probing, bendable shank & tip.
Same as model 7B but with shorter overall length.
(10 tips per box)
More Info -
7H Beryllium Copper Probe Tip (Box of 10)
$75.00–$150.00 (excl. 0% Tax)Per box of 10 tipsProbe Tips -
7F Tungsten Cat Whisker Probe Tip (Box of 10)
$120.00–$240.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsFine tip with bendable shank, for small geometry & temperature stress probing.
(10 tips per box)
More Info -
7X Tungsten Cat Whisker Fine Probe Tip (Box of 10)
$120.00–$240.00 (excl. 0% Tax)Per box of 10 tipsProbe Tips -
7S Compliant S-Wire Shape Tungsten Fine Probe Tip (Box of 10)
$135.00–$265.00 (excl. 0% Tax)Per box of 10 tipsProbe Tips -
Model 7 Series Sample Kit
$85.00 (excl. 0% Tax)Per box of 7 tipsAccessories -
Ace Probe Tips
Request QuoteProbe Tips -
72 Series Probe Holder
$310.00 (excl. 0% Tax)Probe HoldersProbe Holder, malleable with 1-4 inch shaft and set screw probe tip holder. Other lengths available, call or e-mail us for details
More Info -
75-6000-R-XX Probe Holder
$340.00 (excl. 0% Tax)Probe HoldersLead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
75-8000-R-XX Probe Holder
$340.00 (excl. 0% Tax)Probe HoldersLead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-6000-R-03 Coaxial Probe Holder
$565.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-8000-R-03 Coaxial Probe Holder
$575.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-6000-T-03 Triaxial Probe Holder
$750.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-8000-T-03 Triaxial Probe Holder
$790.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-6000-HV-03 High Power Probe Holder
$780.00 (excl. 0% Tax)Probe Holders30″ lead wire terminates in male banana plug for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
High Power Probe Holders
$780.00 – $3,295.00 (excl. 0% Tax)Probe HoldersWe can make mostly any high power probe. However, we have a series of probe holders designed to operate with most Keithley and Keysight power sources and analyzers.
More Info -
79-6000-D-03 Kelvin Probe Holder
$590.00 (excl. 0% Tax)Probe HoldersDual Force and Sense 30″ long signal wires with male coaxial connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.
More Info -
79-6000-TD-03 Kelvin Triaxial Probe Holder
$920.00 (excl. 0% Tax)Probe HoldersDual Force and Sense 30″ long signal wires with male triaxial connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.
More Info -
79-8000-D-03 Kelvin Probe Holder
$605.00 (excl. 0% Tax)Probe HoldersDual Force and Sense 30″ long signal wires with male coaxial connectors for connection to Kelvin measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-8000-TD-03 Kelvin Triaxial Probe Holder
$990.00 (excl. 0% Tax)Probe HoldersDual Force and Sense 30″ long signal wires with male triaxial connectors for connection to Kelvin measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
44-6000-S-NA Probe Holder with Integrated Tip
$535.00 (excl. 0% Tax)Probe HoldersIntegrated female SMA connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
44-8000-S-NA Probe Holder with Integrated Tip
$535.00 (excl. 0% Tax)Probe HoldersIntegrated female SMA connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
44-6000-V-NA Probe Holder with Integrated Tip
$535.00 (excl. 0% Tax)Probe HoldersIntegrated female UMC connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
44-8000-V-NA Probe Holder with Integrated Tip
$535.00 (excl. 0% Tax)Probe HoldersIntegrated female UMC connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
44-6000-D-NA Probe Holder with Integrated Tip
$670.00 (excl. 0% Tax)Probe HoldersIntegrated dual Kelvin (Force and Sense) female UMC connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.
More Info -
44-8000-D-NA Probe Holder with Integrated Tips
$670.00 (excl. 0% Tax)Probe HoldersIntegrated dual Kelvin (Force and Sense) female UMC connectors for connection to Kelvin measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
44-MC-2 Probe Holder with Integrated Tips
$675.00 (excl. 0% Tax)Probe Holders* 50 OHM impedance, gold plated
* Single convex point, straight conical shape
* Dual SSMC sockets each connected to single point/shield presented for patch cord connection
* Requires separate purchase of SSMC to XXX patch cord (XXX = user specification)
More Info -
49-14 Male UMC to Male BNC 14” Length
$285.00 (excl. 0% Tax)Patch Cords -
49-30 Male UMC to Male BNC 30” Length
$285.00 (excl. 0% Tax)Patch Cords -
51-14 Male SMA to Male BNC 14” Length
$285.00 (excl. 0% Tax)Patch Cords -
61-10 Male SSMC 90° to Male SSMC 90° 10” Length
$150.00 (excl. 0% Tax)Patch CordsMale SSMC 90° to Male SSMC 90° patch cord for use with model 44-MC-2 probe holder. 10″ length.
More Info -
61-12 Male SMA to Male SSMC 90° 12” Length
$155.00 (excl. 0% Tax)Patch Cords -
51-30 Male SMA to Male BNC 30” Length
$305.00 (excl. 0% Tax)Patch Cords -
52-30 Male SMA to Male SMA 30” Length
$305.00 (excl. 0% Tax)Patch CordsMale SMA to Male SMA patch cord for use with model 44 probe holders with SMA connector. 30″ length.
More Info -
425 Manipulators
$1,900.00 – $2,175.00 (excl. 0% Tax)Probe Positioners / Manipulators- Compact footprint
- Left/right neutral (all controls are rear of manipulator)
- True linear motion
- Recommended for probing < 1-micron targets
- 100 TPI XYZ drive
- Available in Vacuum, Magnetic & Switchable Magnetic base.
- Vacuum Manipulators come with 12″ vacuum tube and connector.
More Info -
525 / 2525 Manipulators with Adjustable Nose Piece
$2,610.00 – $3,325.00 (excl. 0% Tax)Probe Positioners / Manipulators- Quickly lift & lower probes with “Quick-Z” feature
- Fully adjustable nose piece (rotate, height)
- Left/right neutral (all controls are rear of manipulator)
- True linear motion
- Recommended for probing < 1-micron targets
- 100 TPI (525) and 200TPI (2525) XYZ drive
- Vacuum, Magnetic, & Switchable Magnetic base
- Vacuum Manipulators come with 12″ vacuum tube and connector.
More Info -
High Frequency Manipulators
$2,860.00 – $3,135.00 (excl. 0% Tax)Probe Positioners / Manipulators- Left/right neutral
- Recommended for probing < 1-micron targets
- 100 TPI XYZ drive
- Vacuum, Magnetic, & Switchable Magnetic base
- Terminates in 3-hole mounting ledge with or without 90° angle for popular coplanar probe heads.
- Straight configuration for left/right manipulator placement.
- Supports GS, SG, GSG, and other popular probe head configurations.
- Planarity (Roll) adjustment = +/- 5-degree. Resolution = 0.005 degrees per degree rotation.
- Theta (Yaw) adjustment: Range = +/- 5 degrees. Resolution = 0.005 per degree rotation
More Info -
PPM203B
$3,500.00 (excl. 0% Tax)Probe Positioners / Manipulators-
- 10 TPI XYZ drive
- 14″ reach in X & Y
- General-purpose benchtop positioner
- Designed to hold a variety of hand held probes from makers such as, Tektronix, Fluke, Rhode & Schwarz, ThermoFisher, Keysight, Arrow
.
More Info -
-
450 / 550 Series High or Low Profile Manipulators
$2,190.00 (excl. 0% Tax)Probe Positioners / ManipulatorsLeft or Right handed (XYZ controls forward facing when placed on corresponding side of probing setup). Miniarc motion. Recommended for probing > 1-micron geometries. 100 T.P.I XYZ drive. Requires probe holder (order separately). High profile base for use on probe stations with the wafer chuck above the platen or low profile base for use on probe stations with the wafer chuck is below the platen. Vacuum Base manipulators require customer supplied vacuum.
More Info -
Ace Manipulators
Request QuoteProbe Positioners / Manipulators -

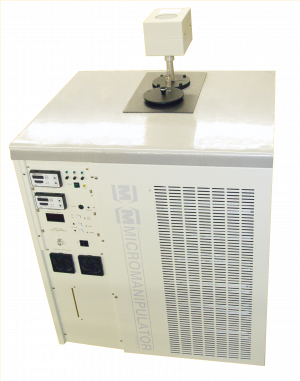

H1000 Hot Chuck
Request QuoteAccessoriesH1000 Thermal Chuck System Flyer
- A Micromanipulator exclusive offering
- Optional available for all Micromanipulator probe stations
- Up to 300mm versions
- Exclusive high planarity, low expansion design
- -65C to 400C temperature range
More Info -
High Frequency Probes
$230.00 – $9,410.00 (excl. 0% Tax)Probe HoldersSelect the drop down menu to review the different options available.Call or Email Us for more information.
More Info -

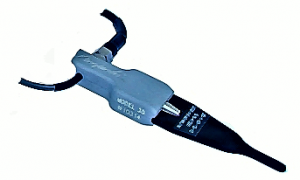

High Impedance Active Probes
$830.00 – $7,410.00 (excl. 0% Tax)Probe HoldersSelect the drop down menu to review the different options available.Call or Email Us for more information.
More Info
