Micro positioner with 50 thread per inch resolution

Micro Manipulator

$895.00 (excl. 0% Tax)

excl. 0% Tax
- Destination based Tax US - Physical Products
Plus Shipping Costs

Rectilinear motion

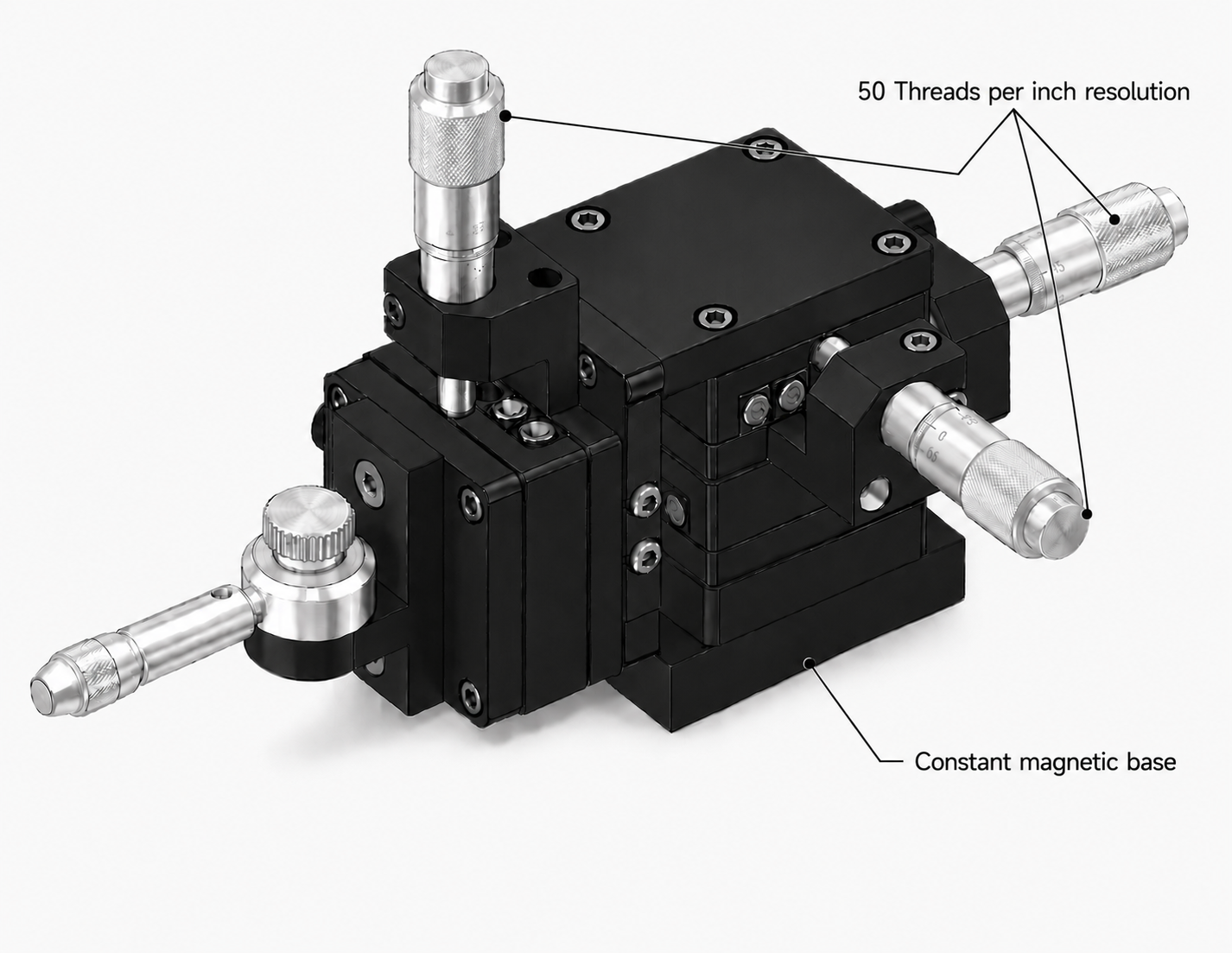

50 T.P.I. (thread per inch) X-Y-Z drive
0.4 inch (10mm) maximum travel per axis X-Y-Z

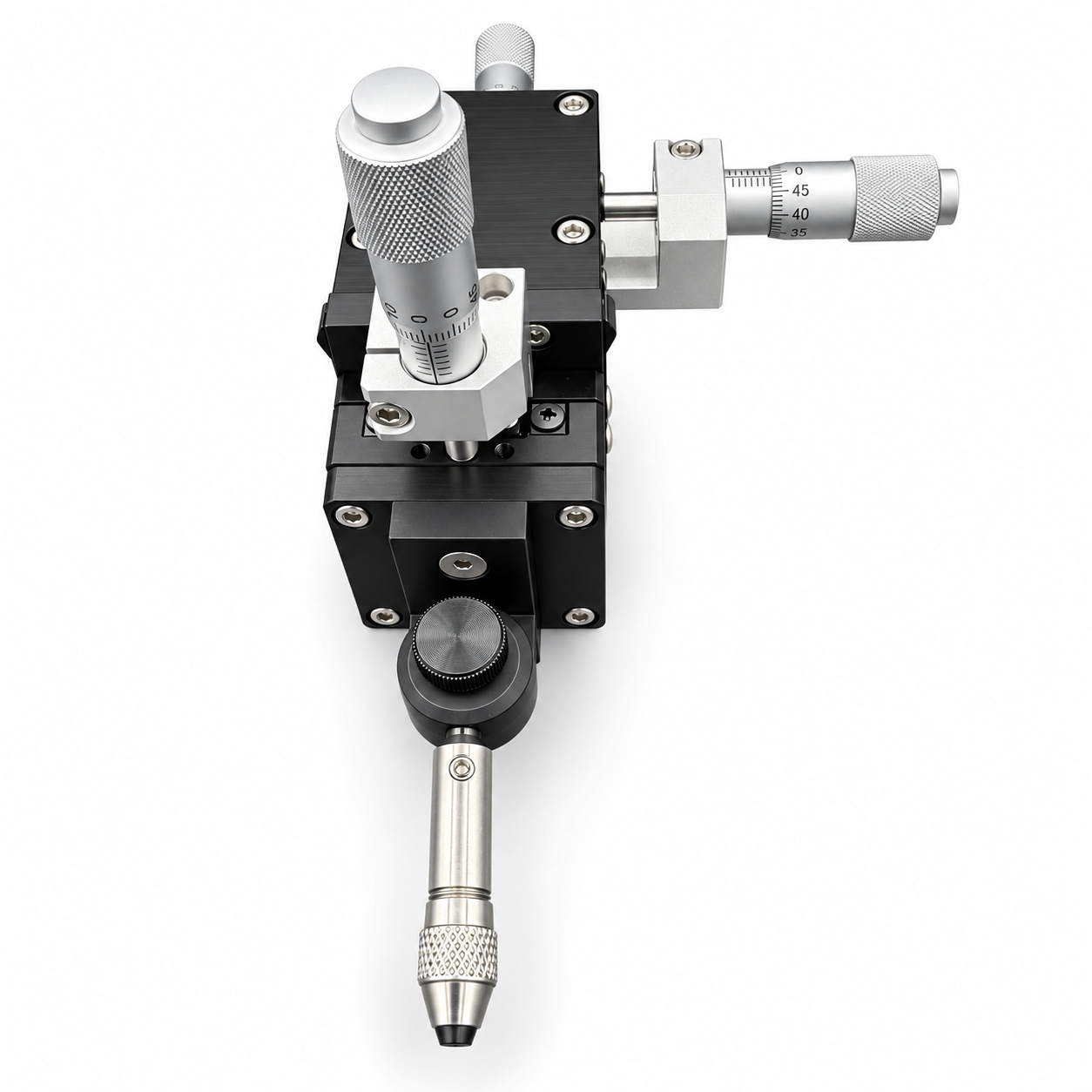

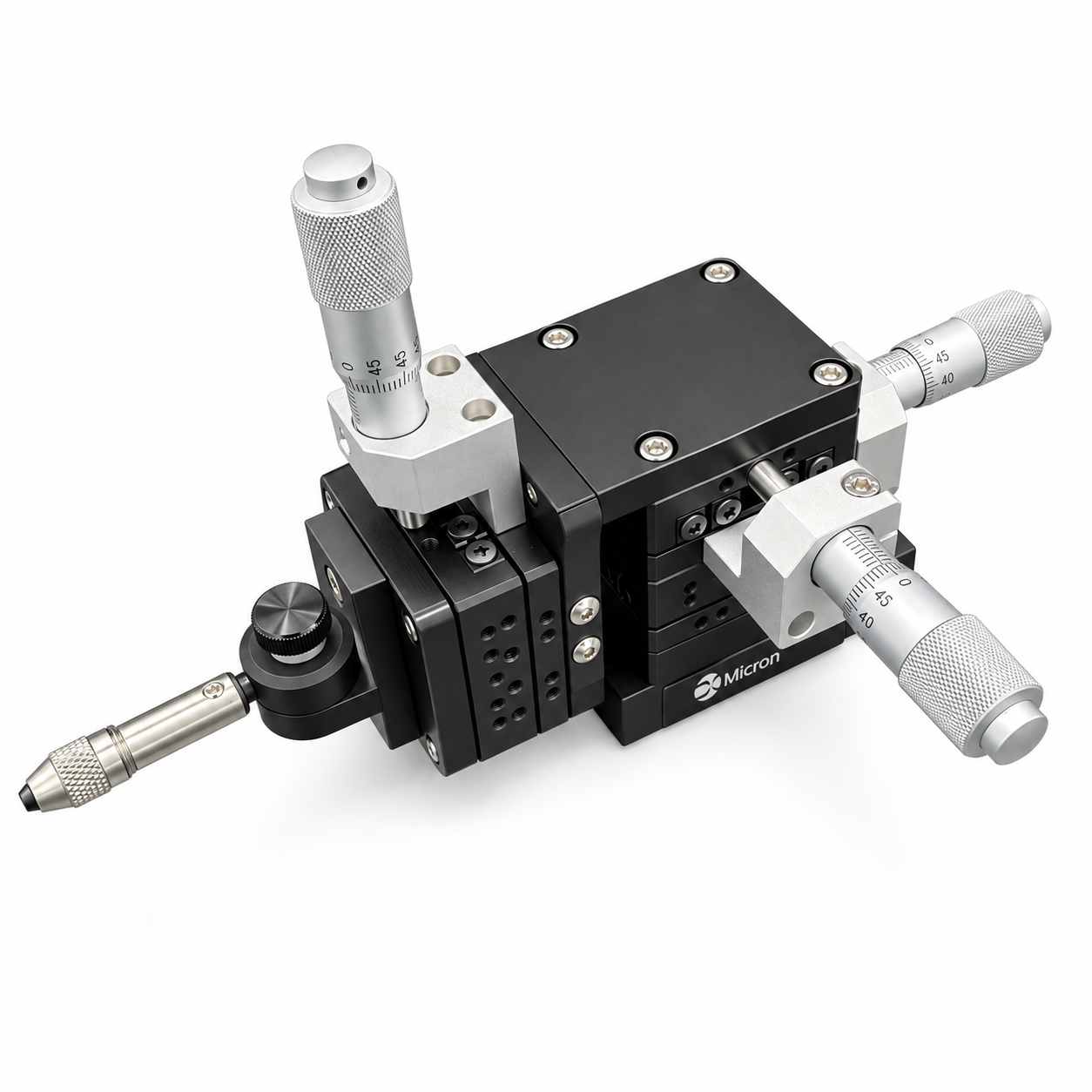

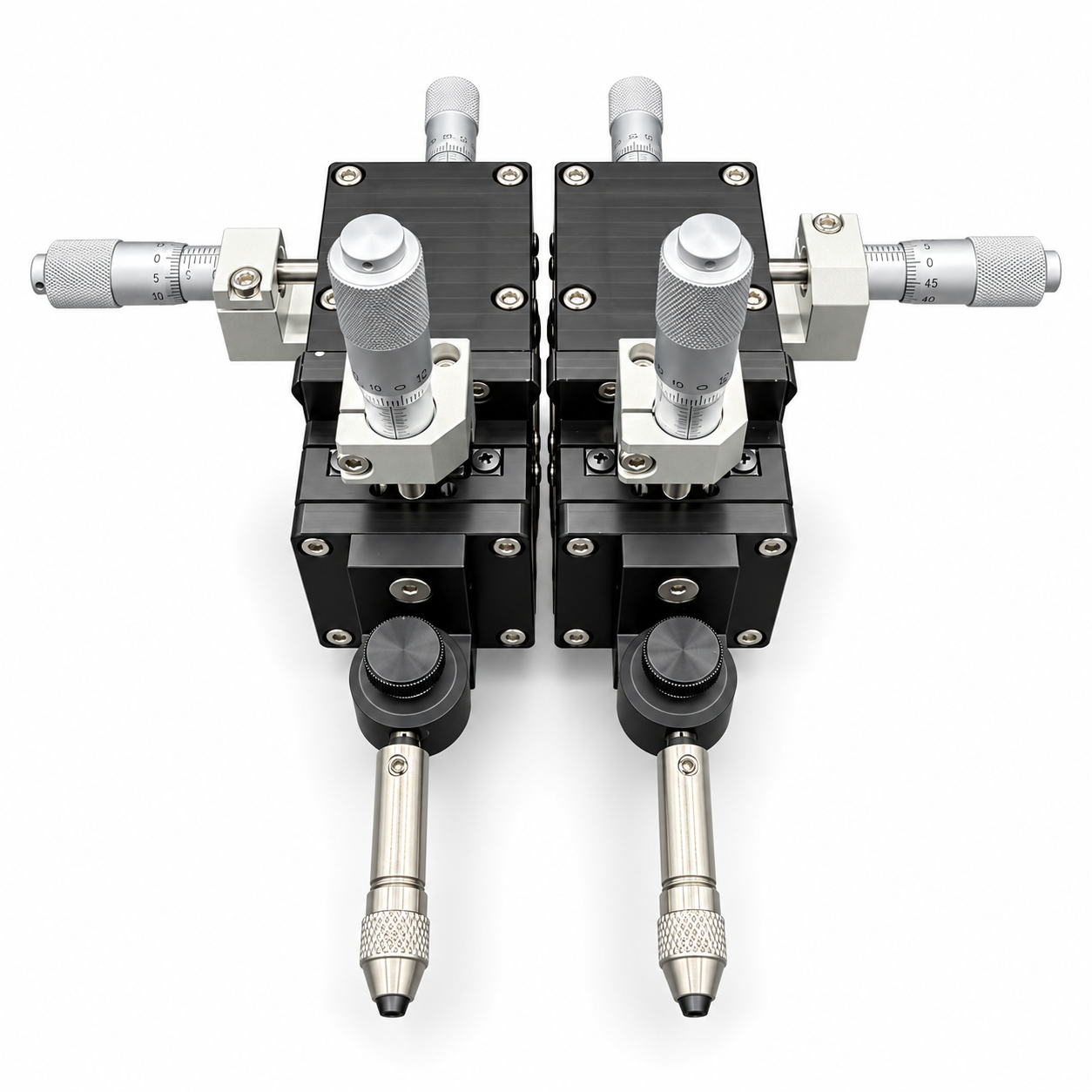

Left/Right options
Magnetic base

Position

Clear

SKU: MICRO-MANIP-MAG Category: Probe Positioners / Manipulators Brand: Micromanipulator

Description

.4″ XYZ Travel
Left/Right options
True linear motion
Recommended for probing < 5-micron targets
50 TPI XYZ drive
Available in Magnetic base.

Additional information

Weight	1.5 lbs
Dimensions	6 × 6 × 6 in
Position	Right Handed, Left Handed
