Micromanipulator
Showing all 56 results
-
VERSA Double Sided Probe System
Request QuoteFront, Micromanipulator Probe Stations- Worlds most versatile probe station
- Double sided probing and imaging
- Probe decapsulated IC’s, wafers, and large boards up to 26″ square, all at temperature.
- -40C to 125C configurable
- Integrated vibration isolation platform
- Magnetic field options
- Patented
- Integration with popular high-resolution emission microscope to pinpoints failure locations, top down and DSP, with temperature too!
More Info -
P200L Semi-Automatic Probe Station
Request QuoteMicromanipulator Probe Stations- 200mm semiautomatic wafer prober
- Optional NETPROBE-7 control software with wafer map, integrated video, theta alignment, sub-die, and pattern recognition
- Drivers available for popular testers companies including Keysight, Keithley, and LabVIEW
- Configurable for DC, RF, Microwave, and High Power applications
- -65C to 400C configurable
More Info -
P300L Semi-Automatic Probe Station
Request QuoteFront, Micromanipulator Probe Stations- 300mm semiautomatic wafer prober
- NETPROBE-7 control software included (wafer map, sub-die, video, theta alignment, pattern recognition)
- Drivers for popular testers from companies like Keysight and Keithley
- Configurable for DC, RF, Microwave, and High Power applications
- -55C to 300C configurable
More Info -
P300J Motorized Manual Probe Station
Request QuoteMicromanipulator Probe Stations- 300mm manual wafer prober
- Joystick control
- Exclusive “Microtouch” motorized controls
- Configurable for DC, RF, Microwave, and High Power applications
- -55C to 300C configurable
More Info -
P300A Semi-Automatic Probe Station
Request QuoteMicromanipulator Probe Stations- Most advanced 300mm semiautomatic wafer prober
- NETPROBE-7 control software included
- Drivers from popular tester companies including Keysight, Keithley, and LabVIEW
- Configurable for DC, RF, Microwave, and High Power applications
- -55C to 300C configurable
More Info -
8060 Manual Probe Station
Request QuoteMicromanipulator Probe Stations- Highest Performance Manual 150mm-200mm Wafer Prober
- Sub-micron positioning & true single point ground
- One handed platen and microscope quick lift
- Configurable for DC, RF, Microwave, and High Power applications
- -65C to 400C configurable
More Info -
4060 Manual Probe Station
Request QuoteMicromanipulator Probe Stations- Efficient Manual 150mm-200mm Wafer Prober
- One handed platen lift for efficient sample changes
- Microscope lift and lock
- Configurable for DC, RF, Microwave, and High Power applications
- -65C to 400C configurable
More Info -
450PM Manual Probe Station
Request QuoteMicromanipulator Probe Stations- Upgradeable Manual 150mm-200mm Wafer Prober
- Configurable for DC, RF, Microwave, and High Power applications
- Ambient to 400C configurable
- Designed to grow with your application
More Info -
6200 Micromanipulator Probe Station Factory Refurbished
Request QuoteRefurbished Probe Stations- Permanently planarized stage & vacuum chuck
- Coarse & Fine stage translation controls X & Y
- Fine & Fast Lift platen controls in Z
- Independent microscope lift
- Compound Microscope
More Info -
Mechatronics ACE Manipulators
$1,680.00 (excl. 0% Tax)Mechatronics Products- Miniarc motion
- 32 T.P.I. (thread per inch) X-Y-Z drive
- 0.4 inch (10mm) maximum travel per axis X-Y-Z
- Left or Right handed
- Magnetic base
More Info -
Sale 40%
7A Tungsten Fine Probe Tip (Box of 10)
$170.00 (excl. 0% Tax)Per box of 10 tipsFront, Probe TipsIdeal for small geometry probing.
The point is thin enough for probing finest lines on a small pitch.(10 tips per box)
Option Info:
High conductance probe tips are available by contacting Micromanipulator & are specially made to increase tip conductance, reducing probe scrubbing by a factor of >5.
More Info -
Sale 40%
7B Tungsten Probe Tip (Box of 10)
Price range: $155.00 through $255.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsIdeal for general purpose probing. Gold Plating & Larger Tip Radius Available.
(10 tips per box)
Option Info: In the select box below, the first number is the point radius. If the number is followed by the letter “G”, then it is Gold Plated Tungsten.
More Info -
Sale 40%
7C C-Bend Dumet Probe Tip (Box of 10)
$170.00 (excl. 0% Tax)Per box of 10 tipsProbe TipsDumet wire is the basic metal component of a Lead-in-Wire.
A diode header wire. With required vacuum tight glass-to-metal seal.
Dumet material with bendable shank and cat whisker pure tungsten tip.(10 tips per box)
More Info -
Sale 40%
7H Beryllium Copper Probe Tip (Box of 10)
$185.00 (excl. 0% Tax)Per box of 10 tipsProbe Tips -
Sale 40%
7S Compliant S-Wire Shape Tungsten Fine Probe Tip (Box of 10)
$325.00 (excl. 0% Tax)Per box of 10 tipsProbe Tips -
Model 7 Series Sample Kit
$95.00 (excl. 0% Tax)Per box of 7 tipsAccessories -
72 Series Probe Holder
Price range: $430.00 through $495.00 (excl. 0% Tax)Probe HoldersProbe Holder, malleable with 2″ or 4″ inch shaft and set screw probe tip holder. call or e-mail us for details
More Info -
75-6000-R-XX Probe Holder
$420.00 (excl. 0% Tax)Probe HoldersLead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
75-8000-R-XX Probe Holder
$420.00 (excl. 0% Tax)Probe HoldersLead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-6000-HO-03 Coaxial Probe Holder
$930.00 (excl. 0% Tax)Probe HoldersPROBE HOLDER, HIGH TEMPERATURE, COAX 30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-6000-R-03 Coaxial Probe Holder
$690.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-6000-R-03-NM Coaxial Probe Holder
$1,680.00 (excl. 0% Tax)Probe HoldersNon Magnetic Version 30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-8000-R-03-NM Coaxial Probe Holder
$1,795.00 (excl. 0% Tax)Probe HoldersNon Magnetic Version 30″ long signal wire with male coaxial connector for connection to measurement instruments.
More Info -
79-8000-R-03 Coaxial Probe Holder
$705.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-6000-T-03 Triaxial Probe Holder
$920.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-6000-T-03-NM Triaxial Probe Holder
$1,970.00 (excl. 0% Tax)Probe HoldersNon Magnetic version 30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-8000-HV-03-NM Non magnetic high power probe holder
$2,170.00 (excl. 0% Tax)Probe HoldersNon Magnetic version 30″ long signal wire with male banana jack connector for connection to measurement instruments.
More Info -
79-8000-T-03-NM Triaxial Probe Holder
$1,930.00 (excl. 0% Tax)Probe HoldersNon Magnetic version 30″ long signal wire with male triaxial connector for connection to measurement instruments.
More Info -
79-8000-T-03 Triaxial Probe Holder
$965.00 (excl. 0% Tax)Probe Holders30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
79-6000-HV-03 High Power Probe Holder
$955.00 (excl. 0% Tax)Probe Holders30″ lead wire terminates in male banana plug for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
79-6000-TD-03 Kelvin Triaxial Probe Holder
$1,125.00 (excl. 0% Tax)Probe HoldersDual Force and Sense 30″ long signal wires with male triaxial connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.
More Info -
79-8000-TD-03 Kelvin Triaxial Probe Holder
$1,210.00 (excl. 0% Tax)Probe HoldersDual Force and Sense 30″ long signal wires with male triaxial connectors for connection to Kelvin measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.
More Info -
44B-6000-S-NA Probe Holder with Integrated Tip
$620.00 (excl. 0% Tax)Probe HoldersIntegrated female SMA connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
44B-6000-S-GP Probe Holder with Integrated Tip and ground plane
$1,135.00 (excl. 0% Tax)Probe HoldersIntegrated female SMA connector for connection to measurement instruments. With ground plane These probe holders have been discontinued. The replacement product options are liked below. High Impedance Active Probes
More Info -
44B-8000-S-GP Probe Holder with Integrated Tip
$795.00 (excl. 0% Tax)Probe HoldersModel 44 probe holder with integrated tip, female SMA connector, and ground plane tip. Does not require probe tip. Probe tip is not replaceable. Requires (1) 51-XX SMA to BNC cables. For use on probe stations with the chuck below the platen.
More Info -
44B-8000-S-NA Probe Holder with Integrated Tip
$715.00 (excl. 0% Tax)Probe HoldersModel 44 probe holder with integrated tip, female SMA connector. Does not require probe tip. Probe tip is not replaceable. Requires (1) 51-XX SMA to BNC cables. For use on probe stations with the chuck below the platen. These probe holders have been discontinued. The replacement product options are liked …
More Info -
44B-6000-V-NA Probe Holder with Integrated Tip
$965.00 (excl. 0% Tax)Probe HoldersIntegrated female UMC connector for connection to measurement instruments. Total body length = 1-7/8”.
More Info -
44B-8000-V-NA Probe Holder with Integrated Tip
$735.00 (excl. 0% Tax)Probe HoldersModel 44 probe holder with integrated tip. Does not require probe tip. Female UMC connector. Probe tip is not replaceable. Requires (1) 49-XX UMC to BNC cables. For use on probe stations with the chuck below the platen.
More Info -
44B-6000-D-NA Probe Holder with Integrated Tip
$810.00 (excl. 0% Tax)Probe HoldersIntegrated dual Kelvin (Force and Sense) female UMC connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”. This product has been discontinued. The replacement product has been liked below. 79-6000-D-03 Kelvin Probe Holder
More Info -
44B-8000-D-NA Probe Holder with Integrated Tips
Request QuoteProbe HoldersModel 44 probe holder with integrated tip, Kelvin, dual female UMC connectors. Does not require probe tip. Probe tip is not replaceable. Requires (2) 49-XX UMC to BNC cables. For use on probe stations with the chuck below the platen. This product has been discontinued below is the alternative 79-8000-D-03 …
More Info -
49-14 Male UMC to Male BNC 14” Length
$365.00 (excl. 0% Tax)Patch Cords -
49-30 Male UMC to Male BNC 30” Length
$365.00 (excl. 0% Tax)Patch Cords -
51-14 Male SMA to Male BNC 14” Length
$365.00 (excl. 0% Tax)Patch Cords -
61-10 Male SSMC 90° to Male SSMC 90° 10” Length
$230.00 (excl. 0% Tax)Patch CordsMale SSMC 90° to Male SSMC 90° patch cord for use with model 44-MC-2 probe holder. 10″ length.
More Info -
61-12 Male SMA to Male SSMC 90° 12” Length
$250.00 (excl. 0% Tax)Patch Cords -
51-30 Male SMA to Male BNC 30” Length
$390.00 (excl. 0% Tax)Patch Cords -
425 Manipulators
Price range: $2,570.00 through $2,775.00 (excl. 0% Tax)Probe Positioners / Manipulators- Compact footprint
- .5″ XYZ Travel
- Left/right neutral (all controls are rear of manipulator)
- True linear motion
- Recommended for probing < 1-micron targets
- 100 TPI XYZ drive
- Available in Vacuum, Magnetic & Switchable Magnetic base.
- Vacuum Manipulators come with 12″ vacuum tube and connector.
More Info -
525 / 2525 Manipulators with Adjustable Nose Piece
Price range: $3,250.00 through $4,070.00 (excl. 0% Tax)Probe Positioners / Manipulators- Quickly lift & lower probes with “Quick-Z” feature
- .5″ XYZ Travel
- Fully adjustable nose piece (rotate, height)
- Left/right neutral (all controls are rear of manipulator)
- True linear motion
- Recommended for probing < 1-micron targets
- 100 TPI (525) and 200TPI (2525) XYZ drive
- Vacuum, Magnetic, & Switchable Magnetic base
- Vacuum Manipulators come with 12″ vacuum tube and connector.
More Info -

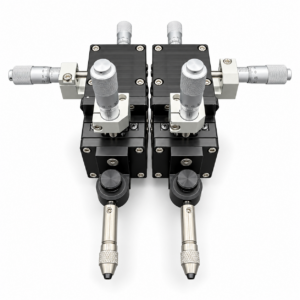

Micro Manipulator
$895.00 (excl. 0% Tax)Probe Positioners / Manipulators- Rectilinear motion
- 50 T.P.I. (thread per inch) X-Y-Z drive
- 0.4 inch (10mm) maximum travel per axis X-Y-Z
- Left/Right options
- Magnetic base
More Info -
A1010607
$352.50 (excl. 0% Tax)Accessories -
H1000 Hot Chuck Refurbished
Request QuoteRefurbished Probe StationsH1000 Thermal Chuck System Flyer
- A Micromanipulator exclusive offering
- Optional available for all Micromanipulator probe stations
- Up to 300mm versions
- Exclusive high planarity, low expansion design
- -65C to 400C temperature range
More Info -
High Frequency Probes
Price range: $480.00 through $10,920.00 (excl. 0% Tax)Probe HoldersSelect the drop down menu to review the different options available.Call or Email Us for more information.
More Info -
High Impedance Active Probes
Price range: $830.00 through $7,410.00 (excl. 0% Tax)Probe HoldersSelect the drop down menu to review the different options available.Call or Email Us for more information.
More Info -
Micromanipulator Hot Chucks
Request QuoteAccessoriesMicromanipulator Thermal Chuck Systems
- A Micromanipulator exclusive offering
- Optional available for all Micromanipulator probe stations
- Up to 300mm versions
- Exclusive high planarity, low expansion design
- -65C to 400C temperature range
More Info -
Pre Paid Shipping CIF
$15.62 (excl. 0% Tax)Accessories -
110/210 Manipulators
$1,680.00 (excl. 0% Tax)Probe Positioners / Manipulators- Miniarc motion
- 32 T.P.I. (thread per inch) X-Y-Z drive
- 0.4 inch (10mm) maximum travel per axis X-Y-Z
- Left or Right handed
- Vacuum base
More Info
