Probe Holders

Micromanipulator offers the most comprehensive line up of probe holders available on the market today. Our products address applications ranging from general purpose DC characterization, high speed, wide bandwidth, to low current and high power. We design, test and manufacture a wide range of high-quality probe holders to meet our customers’ personal preferences, measurement equipment interface requirements or application demands as well as budget.

Product Documentation: Probe Tips and Probe Holder Reference Manual

[WPSM_AC_SH id=1680]

Showing all 30 results

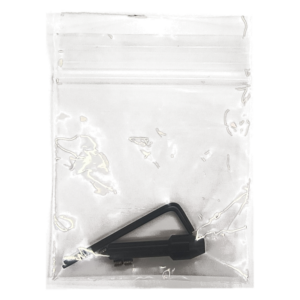

Probe Holder Accessory Pack A1003051
$50.00 (excl. 0% Tax)
Probe Holders

Accessory Pack

Two hex wrenches

Four set screws

One delrin probe holder mount

More Info
72 Series Probe Holder
Price range: $430.00 through $495.00 (excl. 0% Tax)
Probe Holders

Probe Holder, malleable with 2″ or 4″ inch shaft and set screw probe tip holder. call or e-mail us for details

More Info
75-6000-R-XX Probe Holder
$420.00 (excl. 0% Tax)
Probe Holders

Lead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments. Total body length = 1-7/8”.

More Info
75-8000-R-XX Probe Holder
$420.00 (excl. 0% Tax)
Probe Holders

Lead wire terminates in a circular eye connector with an approximately 1/16 inch (1.6mm) hole for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.

More Info
79-6000-HO-03 Coaxial Probe Holder
$930.00 (excl. 0% Tax)
Probe Holders

PROBE HOLDER, HIGH TEMPERATURE, COAX 30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
79-6000-R-03 Coaxial Probe Holder
$690.00 (excl. 0% Tax)
Probe Holders

30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
79-6000-R-03-NM Coaxial Probe Holder
$1,680.00 (excl. 0% Tax)
Probe Holders

Non Magnetic Version 30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
79-8000-R-03-NM Coaxial Probe Holder
$1,795.00 (excl. 0% Tax)
Probe Holders

Non Magnetic Version 30″ long signal wire with male coaxial connector for connection to measurement instruments.

More Info
79-8000-R-03 Coaxial Probe Holder
$705.00 (excl. 0% Tax)
Probe Holders

30″ long signal wire with male coaxial connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.

More Info
79-6000-T-03 Triaxial Probe Holder
$920.00 (excl. 0% Tax)
Probe Holders

30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
79-6000-T-03-NM Triaxial Probe Holder
$1,970.00 (excl. 0% Tax)
Probe Holders

Non Magnetic version 30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
79-8000-HV-03-NM Non magnetic high power probe holder
$2,170.00 (excl. 0% Tax)
Probe Holders

Non Magnetic version 30″ long signal wire with male banana jack connector for connection to measurement instruments.

More Info
79-8000-T-03-NM Triaxial Probe Holder
$1,930.00 (excl. 0% Tax)
Probe Holders

Non Magnetic version 30″ long signal wire with male triaxial connector for connection to measurement instruments.

More Info
79-8000-T-03 Triaxial Probe Holder
$965.00 (excl. 0% Tax)
Probe Holders

30″ long signal wire with male triaxial connector for connection to measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.

More Info
79-6000-HV-03 High Power Probe Holder
$955.00 (excl. 0% Tax)
Probe Holders

30″ lead wire terminates in male banana plug for connection to measurement instruments. Total body length = 1-7/8”.

More Info
High Power Probe Holders
Price range: $900.00 through $3,790.00 (excl. 0% Tax)
Front, Probe Holders

We can make mostly any high power probe. However, we have a series of probe holders designed to operate with most Keithley and Keysight power sources and analyzers.

More Info
79-6000-D-03 Kelvin Probe Holder
$745.00 (excl. 0% Tax)
Probe Holders

Dual Force and Sense 30″ long signal wires with male coaxial connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.

More Info
79-6000-TD-03 Kelvin Triaxial Probe Holder
$1,125.00 (excl. 0% Tax)
Probe Holders

Dual Force and Sense 30″ long signal wires with male triaxial connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.

More Info
79-8000-D-03 Kelvin Probe Holder
$755.00 (excl. 0% Tax)
Probe Holders

Dual Force and Sense 30″ long signal wires with male coaxial connectors for connection to Kelvin measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.

More Info
79-8000-TD-03 Kelvin Triaxial Probe Holder
$1,210.00 (excl. 0% Tax)
Probe Holders

Dual Force and Sense 30″ long signal wires with male triaxial connectors for connection to Kelvin measurement instruments. Total body length = 3-1/8 ”. Total body drop (by bent body) = 1-1/4”.

More Info
44B-6000-S-NA Probe Holder with Integrated Tip
$620.00 (excl. 0% Tax)
Probe Holders

Integrated female SMA connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
44B-6000-S-GP Probe Holder with Integrated Tip and ground plane
$1,135.00 (excl. 0% Tax)
Probe Holders

Integrated female SMA connector for connection to measurement instruments. With ground plane

More Info
44B-8000-S-GP Probe Holder with Integrated Tip
$795.00 (excl. 0% Tax)
Probe Holders

Model 44 probe holder with integrated tip, female SMA connector, and ground plane tip. Does not require probe tip. Probe tip is not replaceable. Requires (1) 51-XX SMA to BNC cables. For use on probe stations with the chuck below the platen.

More Info
44B-8000-S-NA Probe Holder with Integrated Tip
$715.00 (excl. 0% Tax)
Probe Holders

Model 44 probe holder with integrated tip, female SMA connector. Does not require probe tip. Probe tip is not replaceable. Requires (1) 51-XX SMA to BNC cables. For use on probe stations with the chuck below the platen

More Info
44B-6000-V-NA Probe Holder with Integrated Tip
$965.00 (excl. 0% Tax)
Probe Holders

Integrated female UMC connector for connection to measurement instruments. Total body length = 1-7/8”.

More Info
44B-8000-V-NA Probe Holder with Integrated Tip
$735.00 (excl. 0% Tax)
Probe Holders

Model 44 probe holder with integrated tip. Does not require probe tip. Female UMC connector. Probe tip is not replaceable. Requires (1) 49-XX UMC to BNC cables. For use on probe stations with the chuck below the platen.

More Info
44B-6000-D-NA Probe Holder with Integrated Tip
$810.00 (excl. 0% Tax)
Probe Holders

Integrated dual Kelvin (Force and Sense) female UMC connectors for connection to Kelvin measurement instruments. Total body length = 1-7/8”.

More Info
44B-8000-D-NA Probe Holder with Integrated Tips
$1,950.00 (excl. 0% Tax)
Probe Holders

Model 44 probe holder with integrated tip, Kelvin, dual female UMC connectors. Does not require probe tip. Probe tip is not replaceable. Requires (2) 49-XX UMC to BNC cables. For use on probe stations with the chuck below the platen.

More Info
High Frequency Probes
Price range: $480.00 through $10,920.00 (excl. 0% Tax)
Probe Holders

Select the drop down menu to review the different options available.Call or Email Us for more information.

More Info
High Impedance Active Probes
Price range: $830.00 through $7,410.00 (excl. 0% Tax)
Probe Holders

Select the drop down menu to review the different options available.Call or Email Us for more information.

More Info

As you can see from our extensive range of probe holders, Micromanipulator has a product suited for any application. Among our selection, we have probe holders with pin jack, spring load, or set screw tip insertion. Depending upon your test requirements, single wire, coaxial, triaxial, coplanar, certified triax or Kelvin configurations are available.

We also manufacture straight or bent probe holders as well as single unit holders such as our Model 44 with a fixed probe tip that is engineered for high frequency or low level signal testing. With a frequency range from DC to 3 GHz, this economical probe is ideal for the most common microwave tests. In fact the Model 44 has so many options; it is almost a custom probe.

The Model 79 is one of our most popular probe holders and offers the choice of coaxial, triaxial, or Kelvin (single point dual wire) as well as the option of standard attack angle or on-axis probe clamps. Users can select a style from standard temperature or high temperature application probe holders.

If you do not see the information you need regarding one of our probe holders, please give us a call. Our engineers are more than happy to answer any questions you may have.

Micromanipulator not only invented analytical probing in 1956 but we are the leading name in the field. We reliably deliver the tools and life cycle support the semiconductor industry depends on. Part of our company’s philosophy and what drives our success is an unfaltering commitment to our customers’ satisfaction. We offer the most comprehensive line up of accessories available on the market including our excellent range of probe holders.

Micromanipulator is a leading supplier of analytical probe tips to the Semiconductor and OEM markets worldwide. Our extensive experience stretches to the roots of the semiconductor industry with our founding in 1956. Our application experience is extensive and you’ll enjoying leveraging performance enhancing IP and technology that is available only from Micromanipulator.

Our probe tip portfolio is extensive with over 90 probe tip selections available. Whether you need low resistance, high power, low current, high frequency, durability, high or low temperature contact optimization, and whether your application is high volume production support, a high value critical FA return, or somewhere in between, we have the right tip.

Take advantage of our on-line store to save time. Not sure which one you need or don’t see the one you want in the on-line store? Call us or send us an e-mail. You will find our staff knowledgeable and eager to help!

Micromanipulator not only invented analytical probing in 1956 but we are the leading name in the field. As such we reliably deliver the tools and life cycle support the semiconductor industry depends on. Part of our company’s philosophy and what drives our success is an unfaltering commitment to our customers’ satisfaction. We offer the most comprehensive line up of accessories available on the market including a range of high-quality probe tips.

As you see from above, we have probe positioners to meet any budget or performance requirements. The economy Model 110 offers a low acquisition cost and small footprint for easy placement. Our medium range probe positioners offer industry leading flexibility and performance with 7 possible setup and positioning adjustments.

The Model 2525VM-2 has excellent COO for high-performance applications including sub-micron tests as well as a one-handed, left/right neutral operation. Our “Wave” series manipulators feature X-Y and Z leadscrew-lead nut control plus theta and planarity controls for alignment of microwave, multi-probe or mini-probe cards (such as Celadon’s “Versa Tile” and coplanar probes).

The probe positioners are stabilized by a vacuum or magnetic base and are used to support the probe holder. They are available in manual, motorized or programmable versions. Furthermore, to permit different probe holder shank widths to be firmly attached to the manipulator, a collet and collet shaft are used. At Micromanipulator the collet shafts are included with our manipulators and applicable collets are included with probe holders.

Please contact us if have any questions or need further information regarding our extensive selection of high-quality probe positioners, holders and tips.

At Micromanipulator we not only invented analytical probing in 1956 but are the leading name in the field. We expertly deliver the tools and life cycle support the semiconductor industry depends on. Part of our company’s philosophy and what drives our success is an unfaltering commitment to our customers’ satisfaction. You will find just what you need with our comprehensive range of probe holders, tips, and probe positioners.

Probe Stations, Consumables, Accessories and Support

When you buy a wafer probe station from Micromanipulator you are also getting our over 60 years of collective experience in the field of analytical probing. This means that every one of our customers benefit from our “Full Life-Cycle Support,” which starts from concept, to production, right through to maintenance.

The concept stage starts with our exceptional team of experienced engineers who design, develop and manufacture probe stations that offer innovative features not found in other manufacturers’ products. One example is our top-of-the-line, 2210-LS System Level Probe Station that is the world’s first true system-level probe station with above and below ambient temperature capabilities.

Micromanipulator’s consumables are part of our life-cycle and include passive probe holders, active probe holders, high frequency probe holders and probe tips. We recognize that choosing the right accessories for a application is critical so we strive to offer the best selection of accessories on the market today. Whether it is personal preference, measurement equipment interface requirements, application demands or budget needs, you will find it at Micromanipulator.

Finally Micromanipulator’s Full Life-Cycle Support includes receiving a top-quality on-site technical support team. In addition to on site support, our engineers are available to answer questions about our probe stations and accessories and to help determine the best products for your needs.
